MC-15 is built on the K8 Power Platform
The MC-15 cleaning drone takes the K8 industrial hexacopter as its flight base and adds a 100 m-class cleaning system. Same K8 platform used as a standalone, plus cleaning-specific payloads on top.
Compact Industrial Cleaning Built on K8

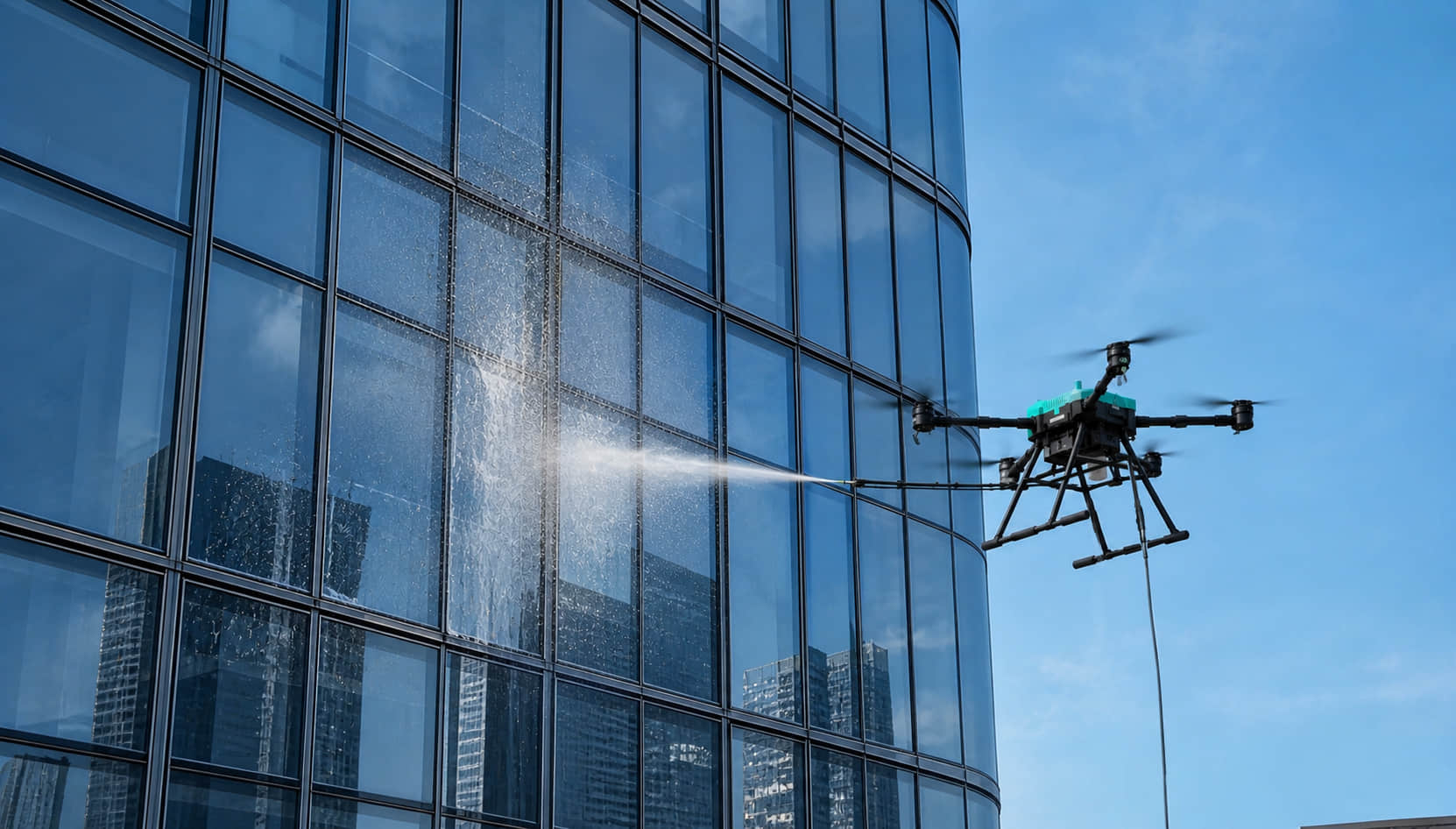

A 6-axis industrial cleaning drone for buildings up to 100 m. Built on the proven K8 power platform, paired with a 20 MPa water-tethered cleaning system, RTK positioning, millimeter-wave radar, and a 4G IoT module for network-based operation identification.
Inherits K8 Power Platform DNA
Three core capabilities that come standard with the K8 base platform — unchanged when MC-15 is configured.
Lightest of the K Family
15 kg rated payload on a 1783 mm wheelbase. The smallest, most agile K platform — purpose-built for portable single-operator cleaning missions and rapid field deployment.
Broadest Battery Compatibility
12S 22–36 Ah standard — works with the widest range of off-the-shelf smart batteries. Lower cell count, lower cost per cycle, easier field charging between jobs.
Compact Fold, 100 KV Motor
30-inch folding propellers driven by K8 motors at 100 KV. Lower per-axis thrust (5–7 kg) for efficient cruise — ideal for carrying cleaning payloads and sensors without over-propulsion.
Drone Core Features
Five core capabilities that ship standard with the MC-15, from positioning to network compliance.

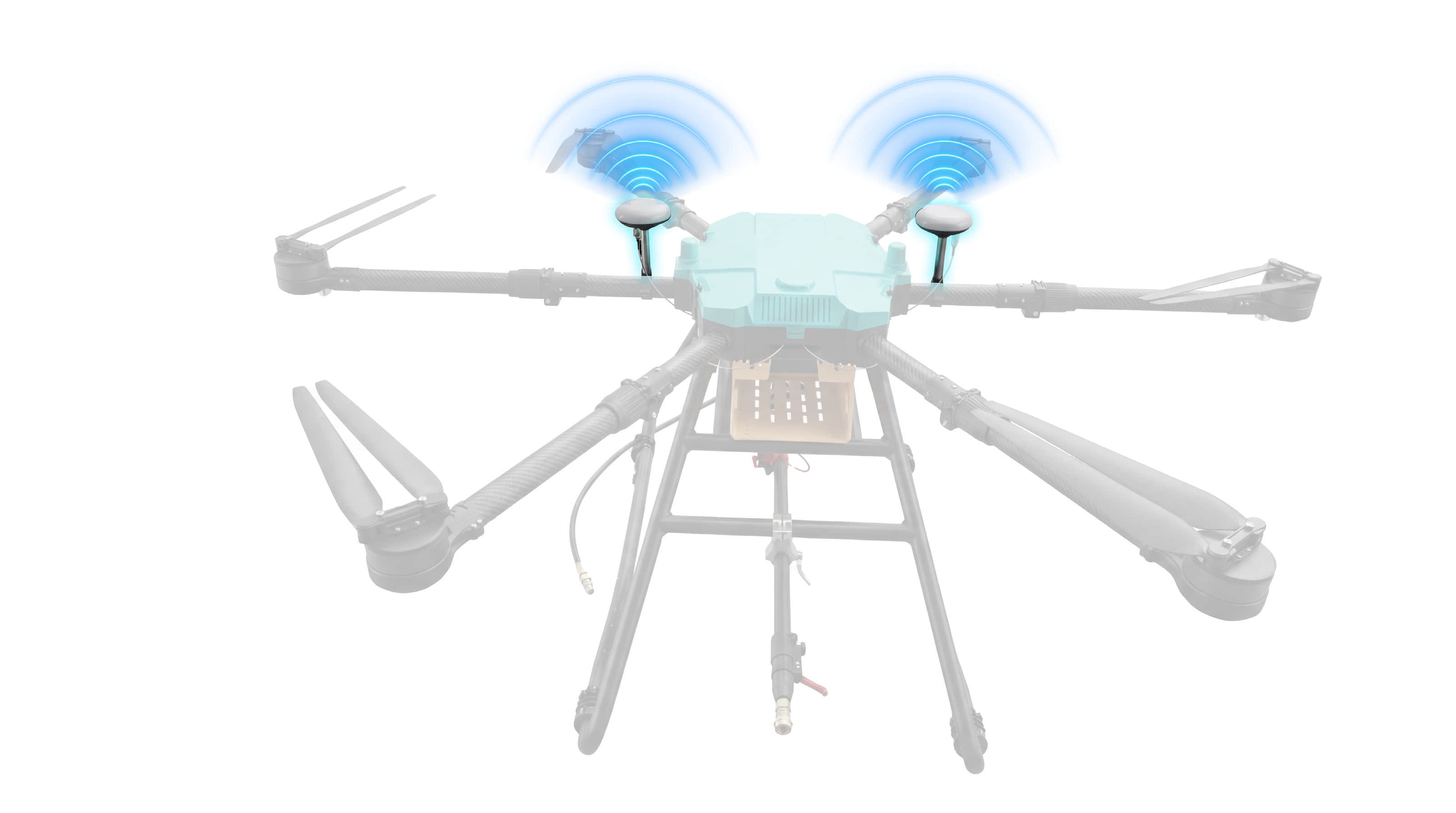

High-Precision Helical RTK Antenna
Standard high-precision helical RTK antenna. Single-point accuracy 1.5 m plane, RTK accuracy 0.8 cm + 1 ppm.

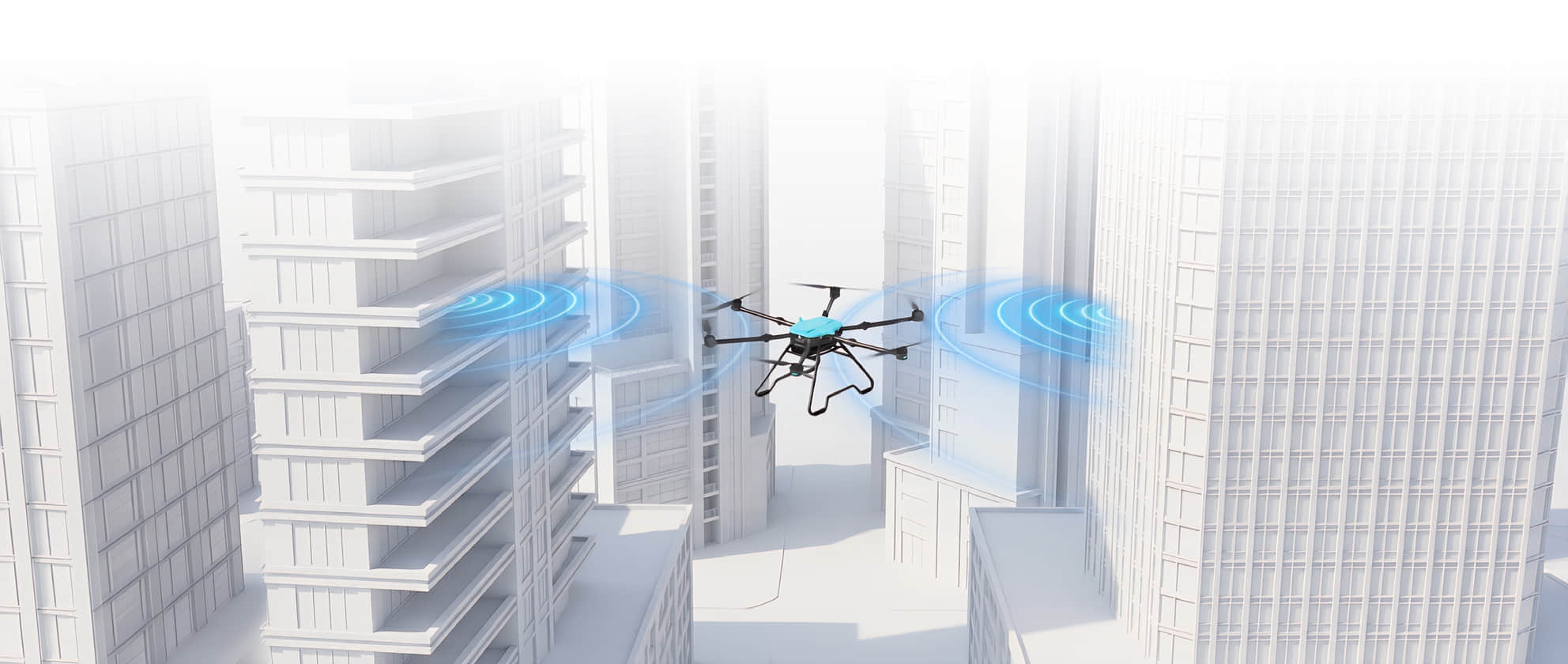

Millimeter-Wave Radar Auto-Obstacle
Auto-detects curtain walls, steel structures, and obstacles. Safe and reliable close-up cleaning operations.
DC / Swing Nozzle (Optional)
Choose between straight-jet nozzle for spot cleaning or swing nozzle for wide coverage. Optional, configured per job.
720P Waterproof Camera + E-Gimbal
Live monitoring of cleaning progress. Electronic gimbal keeps the frame stable in wind and during fast passes.
Integrated 4G Data Upload Module
Built-in 4G module for network-based operation identification, ready for managed airspace operations.
Water-Tethered Core Operating System
All-in-one water-tethered rig with stainless-steel body, swivel wheels, and intelligent chemical mixing. Built for round-the-clock continuous operation.
Stainless-Steel Body
Corrosion-resistant, acid- and alkali-resistant, anti-aging. Integrated custom-built chassis designed for outdoor all-weather deployment.
Smart Chemical Mixing
One-button switching between clean water and detergent. Auto-mix ratio for consistent cleaning quality.
Tethered Power System
Unlimited endurance. All-weather continuous operation via high-voltage tethered supply — 380 V input stepped up to 1000 V at the drone.
Built-in Swivel Wheels
Move the rig freely across the site. Quick positioning between buildings, no manual lifting required.
120–200 m Cable
Custom cable length to match the job. Reach the top of a 100 m building with slack for safe maneuvering around the structure.
Body Design Highlights
Three field-tested design choices that keep MC-15 fast to deploy and easy to maintain.

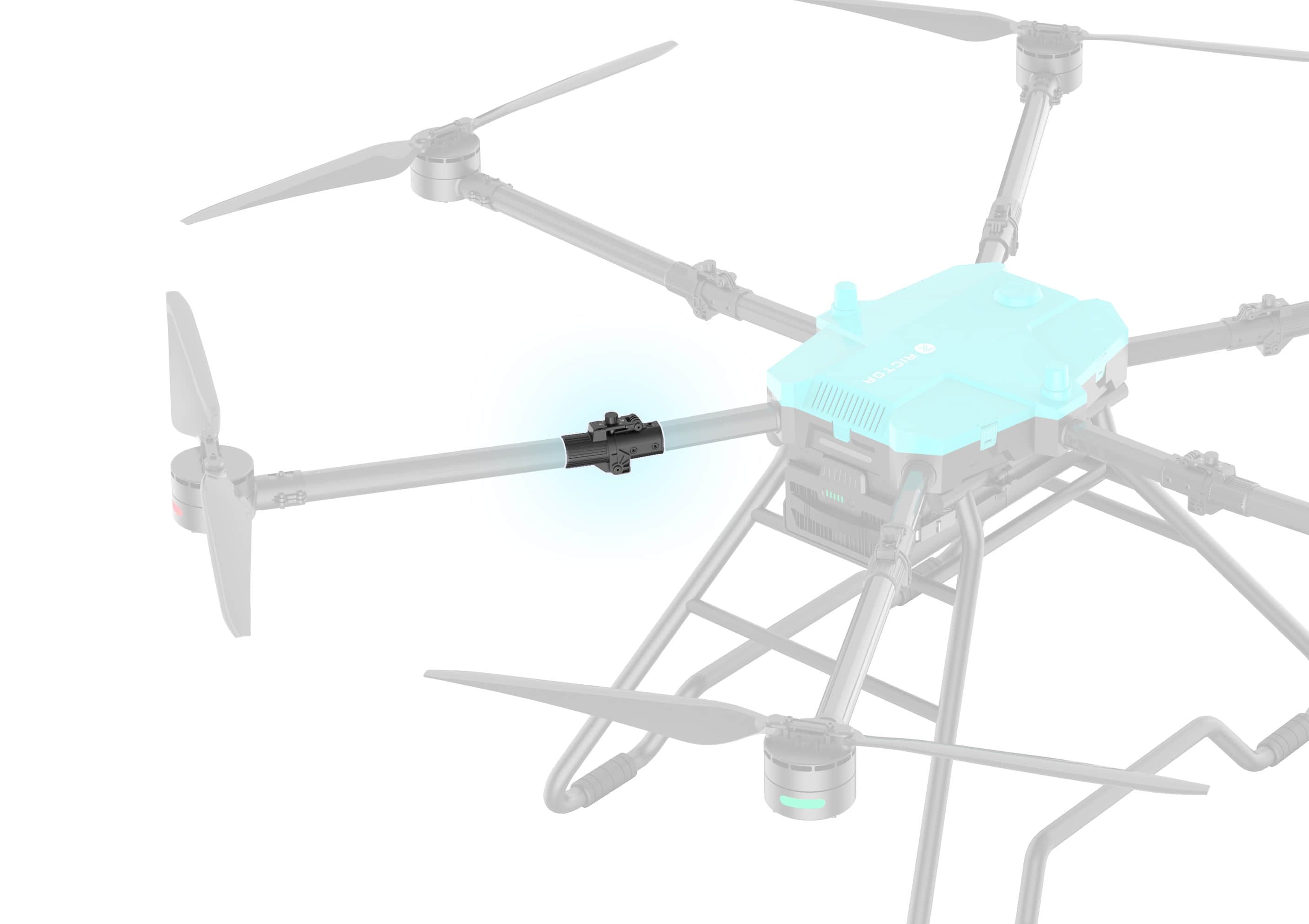

Shell Quick-Release Buckles
Snap-off shell for fast maintenance. Replace damaged panels or swap a fresh color in minutes, no tools required.

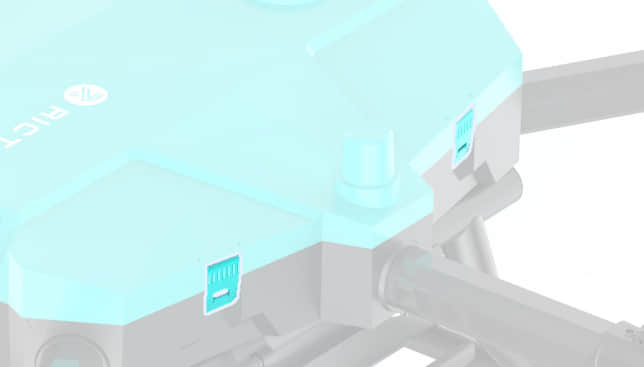

Patented Folding Mechanism
One-person fold in under a minute. Compact transport footprint fits a standard van, ready for the next site.

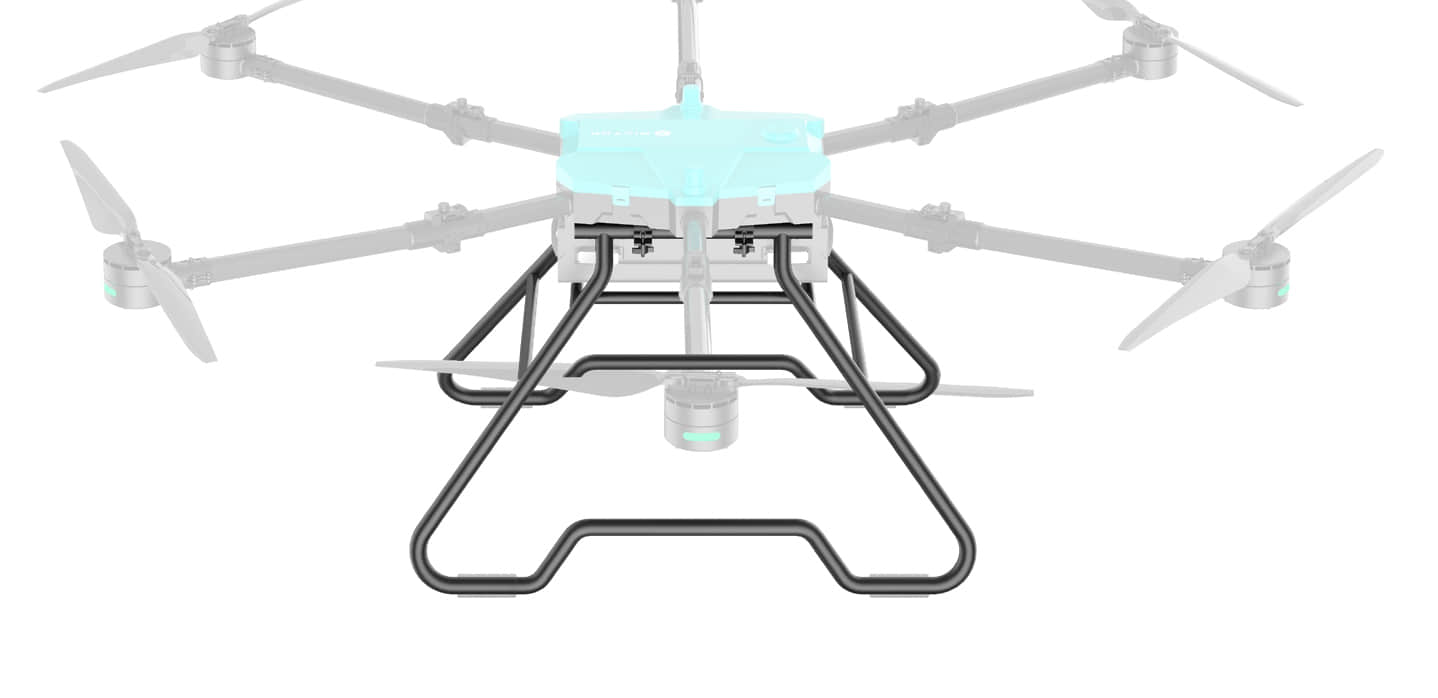

Landing Gear Quick Release
Tool-free landing-gear swap. Adapts to rough ground, sand, or soft surfaces without disassembly.
MC-15 Specifications
Reference parameters. Source: kuailun.com/uav/wash/mc15. Actual performance depends on configuration, payload, weather, and battery choice.
Cleaning & Platform Parameters
Cleaning Performance 5 items
| Max Cleaning Height | 100 m | Tethered water supply mode |
| Cleaning Speed | 1000 ㎡/h | Shallow-layer cleaning |
| Water Pressure | 20 MPa | Ultra-high pressure system |
| Water Tank | 40 L | On-board capacity |
| Wind Resistance | Level 6 | Operational ceiling |
Base Platform (K8) 5 items
| Power Configuration | K8 | In-house motor system |
| Configuration | 6-axis 6-propeller | Industrial hexacopter |
| Propeller | 30-inch folding | High-efficiency rotor |
| Expanded Size | 1800×1640×630mm | Full deployment |
| Folded Size | 1030×940×630mm | Compact transport |
Flight & Battery 5 items
| Endurance | 40 min* | Theoretical max |
| Battery | 12S 36Ah | Standard load |
| Max Ascent Speed | 8 m/s | Vertical climb |
| Max Descent Speed | 6 m/s | Controlled descent |
| Max Horizontal Speed | 10 m/s | Cruise / reposition |
Navigation & Compliance 4 items
| RTK | Standard (helical antenna) | Heading via dual antenna |
| Positioning Accuracy | Single: 1.5m / RTK: 0.8cm+1ppm | Plane / height |
| 4G Module | Standard (Network-based ID) | Operation tracking |
| Camera | 720P waterproof + E-gimbal | Live monitoring |
MC-15 Highlights
* Endurance is a theoretical value; actual endurance is affected by temperature, wind speed, load, and flight profile.
MC-15 Product Gallery

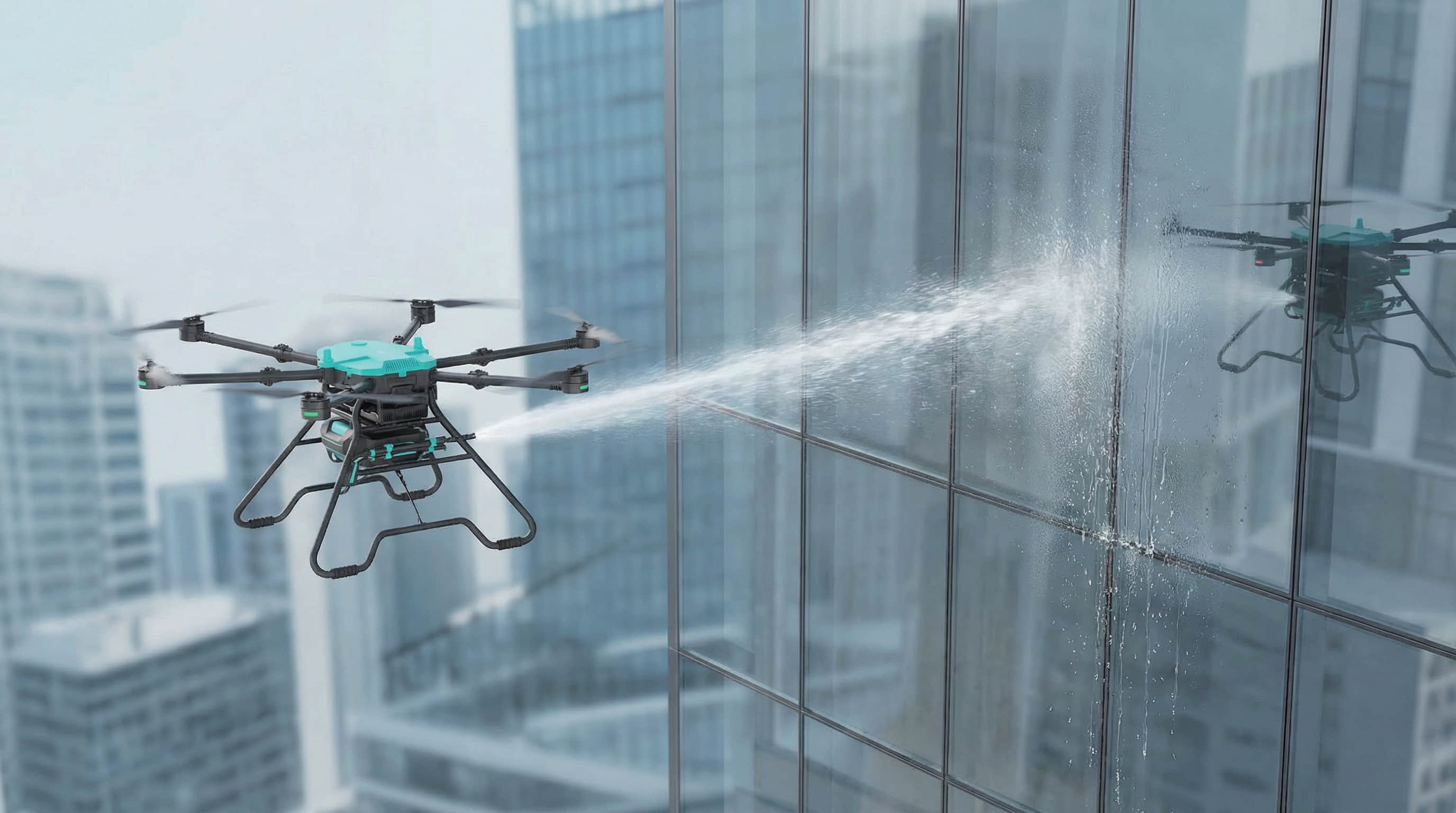

Real images of the MC-15 in operation: full drone, water-tethered rig, and field deployment.
MC-15 vs MC-30 Comparison
Two cleaning-drone configurations built on the K8 and K9 power platforms. Choose by building height and throughput.
| Parameter | MC-15 (Current) | MC-30 |
|---|---|---|
| Base Platform | K8 | K9 |
| Use Case | Small industrial cleaning | Medium industrial cleaning |
| Max Cleaning Height | 100 m | 160 m |
| Cleaning Speed | 1000 ㎡/h | 1500 ㎡/h |
| Endurance | 40 min | 45 min |
| Battery | 12S 36Ah | 14S 36Ah (dual optional) |
| Propeller | 30-inch folding | 36-inch folding |
| Wind Resistance | Level 6 | Level 7 |
| Max Horizontal Speed | 10 m/s | 20 m/s |
| Expanded Size | 1800×1640×630mm | 2035×1855×733mm |
| RTK Antenna | High-precision helical | Anti-jamming ceramic |
